Recursive Common Table Expressions (CTE) with examples

Specifies a temporary named result set, known as a common table expression (CTE). It is commonly used for recursion when a function calls itself multiple times & make queries and subqueries more readable.

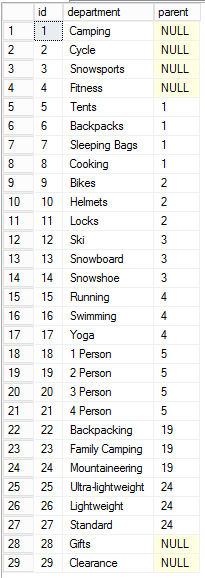

Simple CTE Syntax
;WITH deptCTE (id, department, parent) AS
(
SELECT id, department, parent
FROM Departments
)
SELECT * FROM deptCTE;
Self JOIN a subquery



--Subquery without CTE

SELECT q1.department, q2.department
FROM   (SELECT id, department, parent
    FROM Departments) as q1
INNER JOIN (SELECT id, department, parent
    FROM Departments) as q2
  ON q1.id = q2.parent
WHERE q1.parent is null;

--Subquery with CTE
;WITH deptCTE(id, department, parent) AS
(SELECT id, department, parent
  FROM Departments)
SELECT q1.department, q2.department
  FROM deptCTE q1
 INNER JOIN deptCTE q2 on q1.id = q2.parent
 WHERE q1.parent is null;

Recursive CTE
It is recursive when the CTE references itself
WITH Numbers (N) AS
( SELECT
   UNION ALL
  SELECT 1 + N FROM Numbers
   WHERE N < 1000
)
 SELECT
   FROM Numbers
 OPTION (MAXRECURSION 0);
Recursion stops when the second SELECT produces no results
Specify MAXRECURSION: Default is 100 & MAXRECURSION of 0 implies no maximum
Uses: Hierarchical listing of categories & Recursive calculations
-- Recursive CTE
;WITH DepartmentCTE(DeptId, Department, Parent, Level) AS
( SELECT id as DeptId, Department, parent, 0 as Level
    FROM Departments
   WHERE parent is NULL
   UNION ALL
/***** and now for the recursive part *****/
  SELECT d.id as DeptId, d.Department, d.parent,
         DepartmentCTE.Level + 1 as Level
    FROM Departments d
    INNER JOIN DepartmentCTE
    ON DepartmentCTE.DeptId = d.parent)
SELECT *
FROM DepartmentCTE
ORDER BY parent
/*****Specify MAXRECURSION*****/
OPTION (MAXRECURSION 0);


You can use in multiple ways for formatting the hierarchy
--Recursive CTE with Tree Path
;WITH DepartmentCTE(DeptId, Department, Parent, Level, TreePath) AS
(SELECT id as DeptId, Department, Parent, 0 as Level,
cast(Department as varchar(1024)) as TreePath
    FROM Departments
   WHERE parent is NULL
   UNION ALL -- and now for the recursive part
  SELECT d.id as DeptId, d.Department, d.parent,
         DepartmentCTE.Level + 1 as Level,
         cast(DepartmentCTE.TreePath + ' -> ' +
              cast(d.department as varchar(1024))
            as varchar(1024)) as TreePath
    FROM Departments d
    INNER JOIN DepartmentCTE
    ON DepartmentCTE.DeptId = d.parent)
SELECT *
  FROM DepartmentCTE
 ORDER BY TreePath;

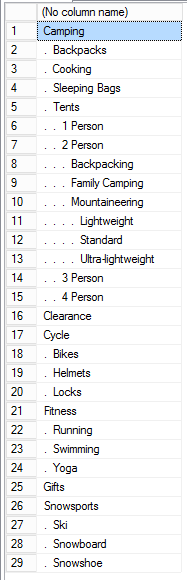

--Recursive CTE with Indentation
;WITH DepartmentCTE(DeptId, Department, Parent, Level, TreePath) AS
( SELECT id as DeptId, Department, parent, 0 as Level,
cast(Department as varchar(1024)) as TreePath
    FROM Departments
   WHERE parent is NULL
   UNION ALL -- and now for the recursive part
  SELECT d.id as DeptId, d.Department, d.parent,
         DepartmentCTE.Level + 1 as Level,
         cast(DepartmentCTE.TreePath + ' -> ' +
              cast(d.department as varchar(1024))
            as varchar(1024)) as TreePath
    FROM Departments d
    INNER JOIN DepartmentCTE
    ON DepartmentCTE.DeptId = d.parent)
SELECT REPLICATE('.  ', Level) + Department
  FROM DepartmentCTE
 ORDER BY TreePath;
Recursive CTE is improve the performance, but using a CTE for re-use of a subquery does not improve performance.
To understand the breaks down execution refer this example, I took this from Stackoverflow site.
CREATE TABLE tbl (
      Id INT
    , [Name] VARCHAR(20)
    , ParentId INT
)

INSERT INTO tbl( Id, Name, ParentId )
VALUES
     (1, 'Europe', NULL)
    ,(2, 'Asia',   NULL)
    ,(3, 'Germany',   1)
    ,(4, 'UK',        1)
    ,(5, 'China',     2)
    ,(6, 'India',     2)
    ,(7, 'Scotland',  4)
    ,(8, 'Edinburgh', 7)
    ,(9, 'Leith',     8)
;WITH abcd
    AS (
        -- anchor
        SELECT  id, Name, ParentID,
                CAST(Name AS VARCHAR(1000)) AS Path
        FROM    tbl
        WHERE   ParentId IS NULL
        UNION ALL
          --recursive member
        SELECT  t.id, t.Name, t.ParentID,
                CAST((a.path + '/' + t.Name) AS VARCHAR(1000)) AS "Path"
        FROM    tbl AS
                JOIN abcd AS
                  ON t.ParentId = a.id
       )
SELECT * FROM abcd OPTION (MAXRECURSION 1000);
  1. The anchor statement is executed. This gives you a set of results, called the base set, or T0.




  1. The recursive statement is executed, using T0 as the table to execute the query against. This happens automatically when you query a CTE.

T1

  1. If the recursive member returns some results, it creates a new set, T1. The recursive member is then executed again, using T1 as input, creating T2 if there are any results.

T2

T3

         T4


  1. Step 3 continues until no more results are generated, OR the maximum number of recursions has been met, as set by the MAX_RECURSION option.

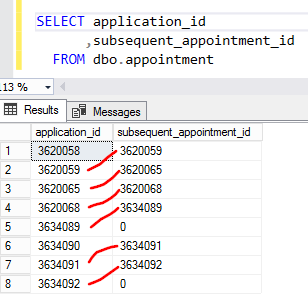

Another real common real world example is here, let’s say you have to find the master application_id for the current application_id.

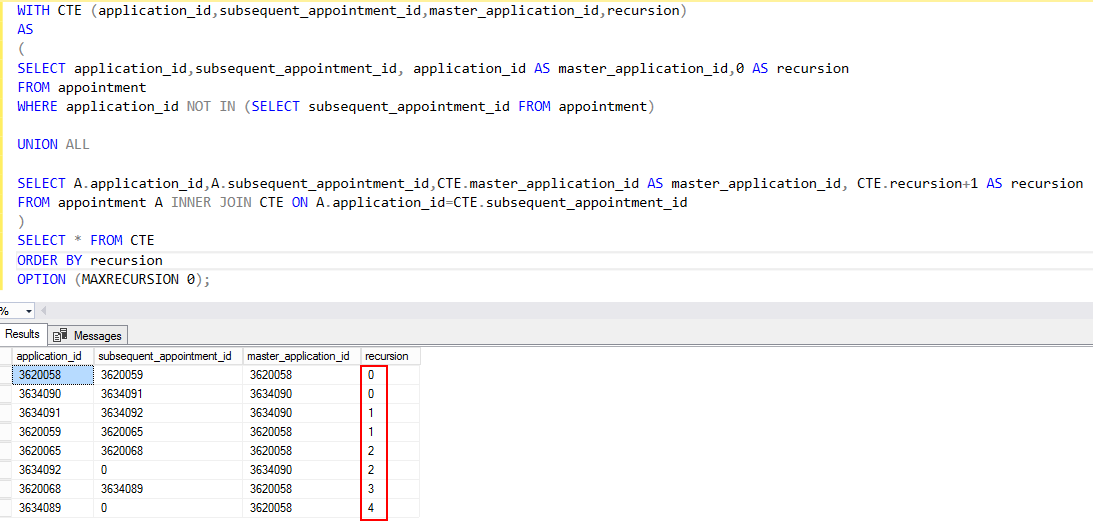

To understand recursion, I have added additional columns as recursion. The recursion will end when the second query does not return any value.


Cheers!

Uma
