How to use Data Profiling Task in SSIS 2014

Data profiling is the process of examining data and collecting metadata about the quality of the data, about frequency of statistical patterns, interdependencies, uniqueness, and redundancy.

The Data Profiling Task is located in the SSIS Toolbox.

In this example, DimCustomer table used for profiling. First you need to create output file, using file connection as shown below.

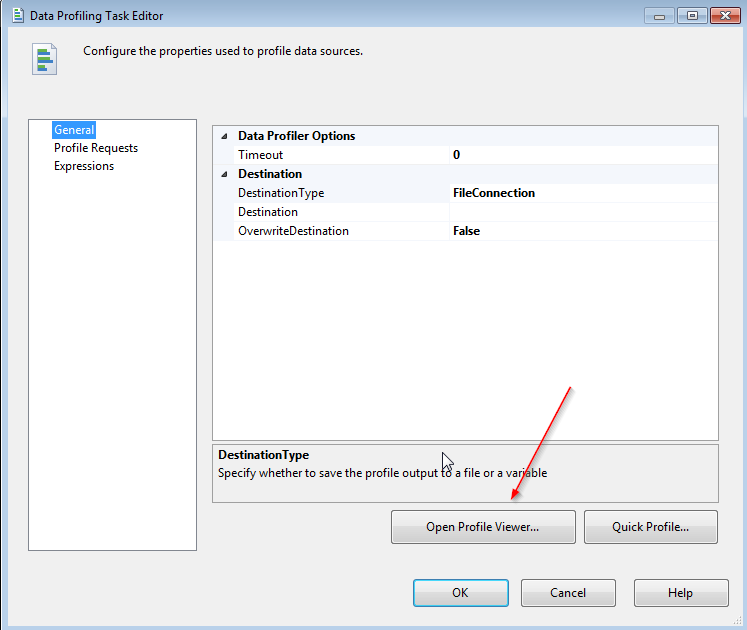

There are two ways to activate these profiles. The first is to click the Quick Profile button on the Data Profiling Task Editor. This creates a set of profiles to run against the same table. Note that the ConnectionManager property must be set to an ADO.NET-based Connection Manager, like the one here connected to AdventureWorksDW

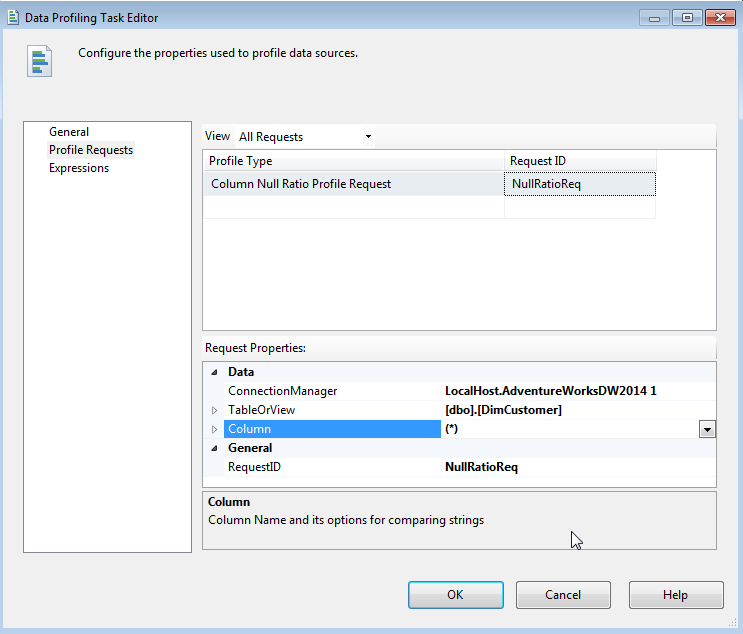

You can also skip the quick profile option and create the profiles one by one. Either way you can navigate to the Profile Requests table to configure the request and add regular expressions or other parameter values to the task properties.

The task provides a set of defined profile request types that can be modified like the other tasks in specific properties. The following list describes the different request types and how you can use them to profile your data:

• Candidate Key Profile Request: The profile request will examine a column or set of columns to determine the likelihood of there being a unique candidate key for the data set. Use this to determine whether you have duplicate key values or whether it is possible to build a natural key with the data.
• Column Length Distribution Profile: This profile request enables you to analyze the statistical profile of all the data in a column, with the percentage of incidence for each length. You can use this to help you determine whether your data column length settings are set correctly or to look for bad data in attributes that are known to be one fixed size.
• Column Null Ratio Profile Request: This profile request looks at the ratio of NULL values in a column. Use this to determine whether you have a data quality problem in your source system for critical data elements.
• Column Pattern Profile Request: This profile request enables you to apply regular expressions to a string column to determine the pass/fail ratio across all the rows. Use this to evaluate business data using business formatting rules.
• Column Statistics Profile Request: This profile request can analyze all the rows and provide statistical information about the unique values across the entire source. This can help you find low incidence values that may indicate bad data. For example, a finding of only one color type in a set of 1 million rows may indicate that you have a bad color attribute value.
• Functional Dependency Profile Request: This is one of two profile requests that enable you to examine relationships between tables and columns to look for discrepancies within a known dependency. For example, you can use this request to find countries with incorrect currency codes.
• Value Inclusion Profile Request: This profile request tests to determine whether the values in one column are all included in a separate lookup or dimension table. Use this to test foreign key relationships.

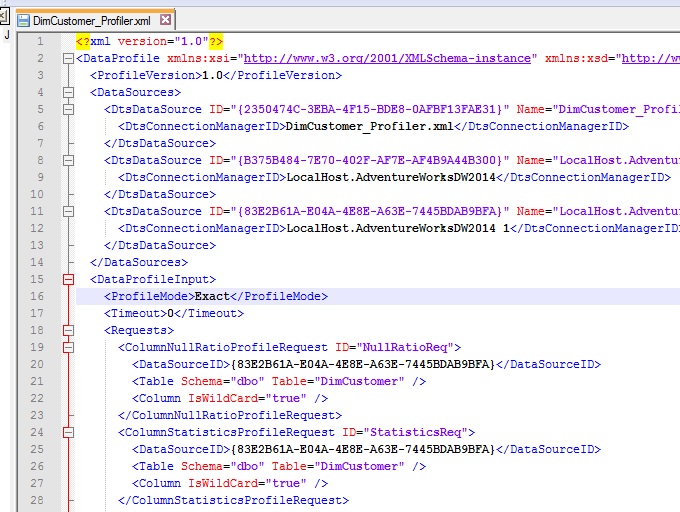

Once you run, the output file will be created something same as below

To access this viewer, select SQL Server ➪ Integration Services from the Start menu. Once the tool is loaded, use the Open button to browse to the output file that will be generated by the Data Profiling Task.

You can view the structured output file that is produced by the Data Profiling Task in a special Data Profiler Viewer that provides drill-downs back to the detail level.

Cheers! Uma
