PREDICTIVE Analytics with Microsoft SQL Server R Service

Predictive analytics involves extracting data from existing data sets with the goal of identifying trends and patterns. These trends and patterns are then used to predict future outcomes and trends. In this post, I am trying to explain how to use Predictive Analysis using Microsoft SQL Server R service.

In this example, salary will be predicted based on other know fields age, experience and gender.

Using R Studio

First, let’s see how to use R Studio for this prediction

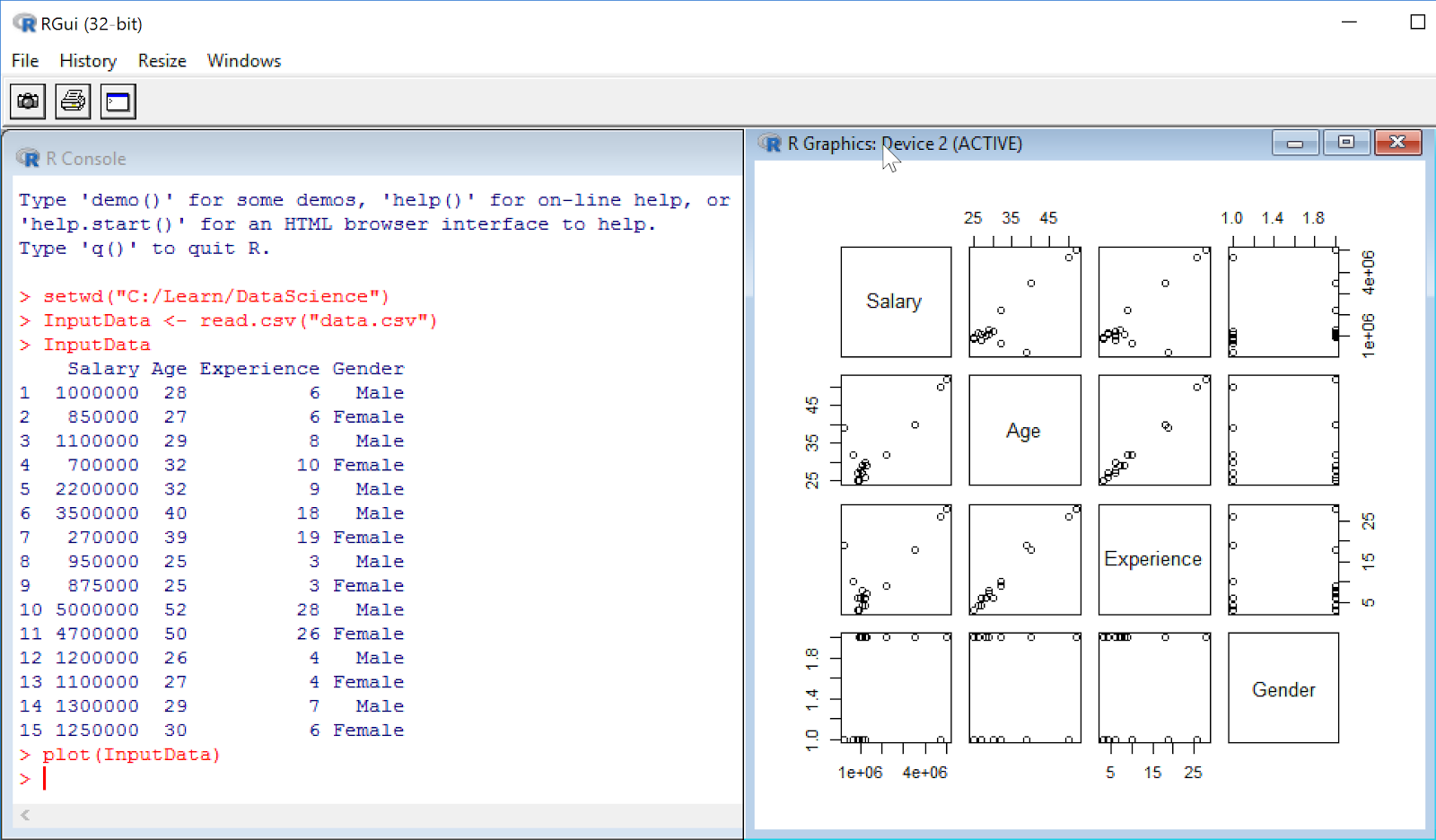

-- Set the default path

> setwd("C:/Learn/DataScience")

-- Load data from csv file to variable called InputData

> InputData <- read.csv("data.csv")

For this prediction Linear Regression is going to used. There are mainly 2 type of linear regressions used.

1. Simple Linear Regression
2. Multiple Linear Regression

Simple Linear Regression

Simple linear regression is a statistical method that allows us to summarize and study relationships between two continuous (quantitative) variables:

• One variable, denoted x, is regarded as the predictor, explanatory, or independent variable.

• The other variable, denoted y, is regarded as the response, outcome, or dependent variable.

Because the other terms are used less frequently today, we'll use the "predictor" and "response" terms to refer to the variables encountered in this course. The other terms are mentioned only to make you aware of them should you encounter them in other arenas. Simple linear regression gets its adjective "simple," because it concerns the study of only one predictor variable. In contrast, multiple linear regression, which we study later in this course, gets its adjective "multiple," because it concerns the study of two or more predictor variables.

Multiple Linear Regression

We move from the simple linear regression model with one predictor to the multiple linear regression model with two or more predictors. That is, we use the adjective "simple" to denote that our model has only predictor, and we use the adjective "multiple" to indicate that our model has at least two predictors.

Please read more information here.

R provides comprehensive support for linear regression.

lm() is a linear model function, such like linear regression analysis.

lm(formula, data, subset, weights, ...)
formula: model description, such as x ~ y
data: optional, variables in the model
subset: optional, a subset vector of observations to be used in the fitting process
weights: optional, a vector of weights to be used in the fitting process

> Model <- lm(InputData$Salary~InputData$Age+InputData$Experience+factor(InputData$Gender))

> summary (Model)

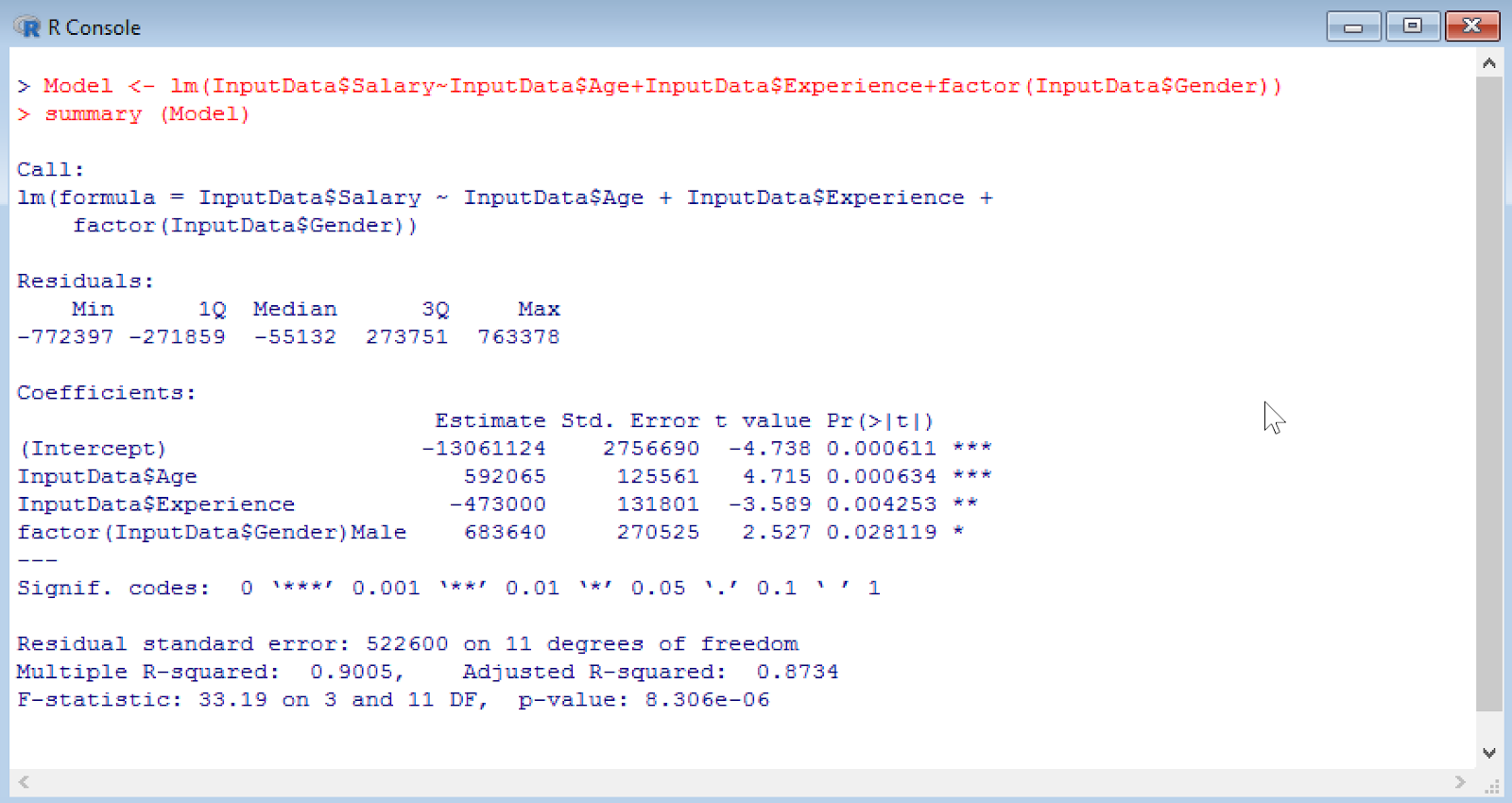

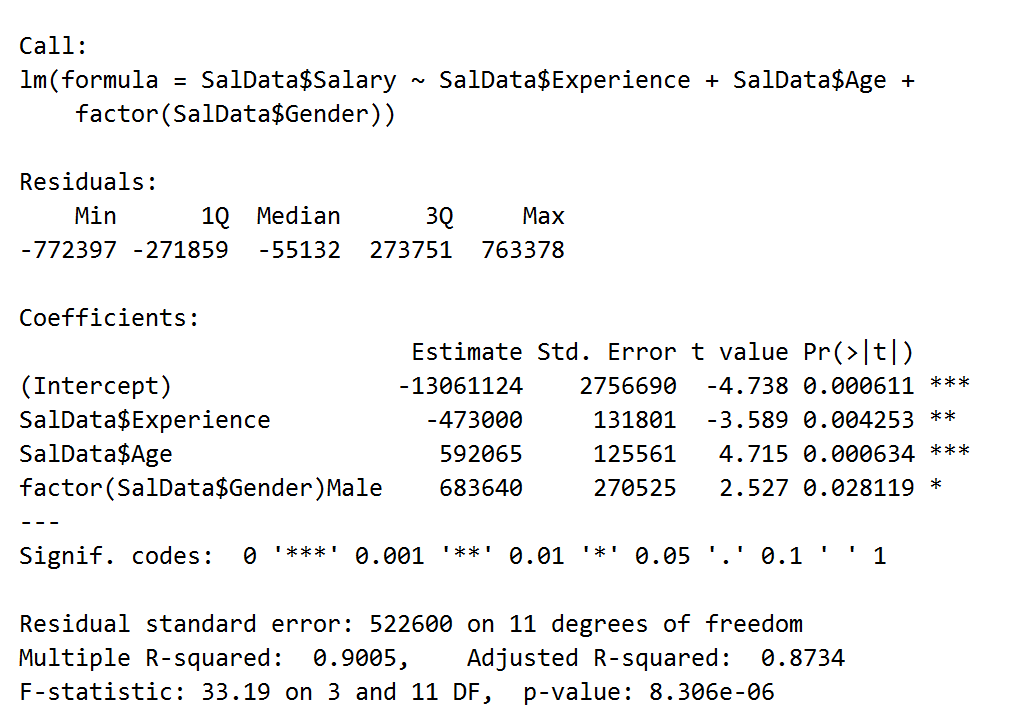

The important part of model out is highlighted below.

InputData$Salary~InputData$Age+InputData$Experience+factor(InputData$Gender)

You can have noticed that Gender field is used as factor, so the interpretation of the above outcome.

If Gender = Male, Then

Salary = (-13061124) + (-473000 * PredictSal$Experience) + (592065 * PredictSal$Age) + 683640

If Gender = Female, Then

Salary = (-13061124) + (-473000 * PredictSal$Experience) + (592065 * PredictSal$Age)

Visual Studio

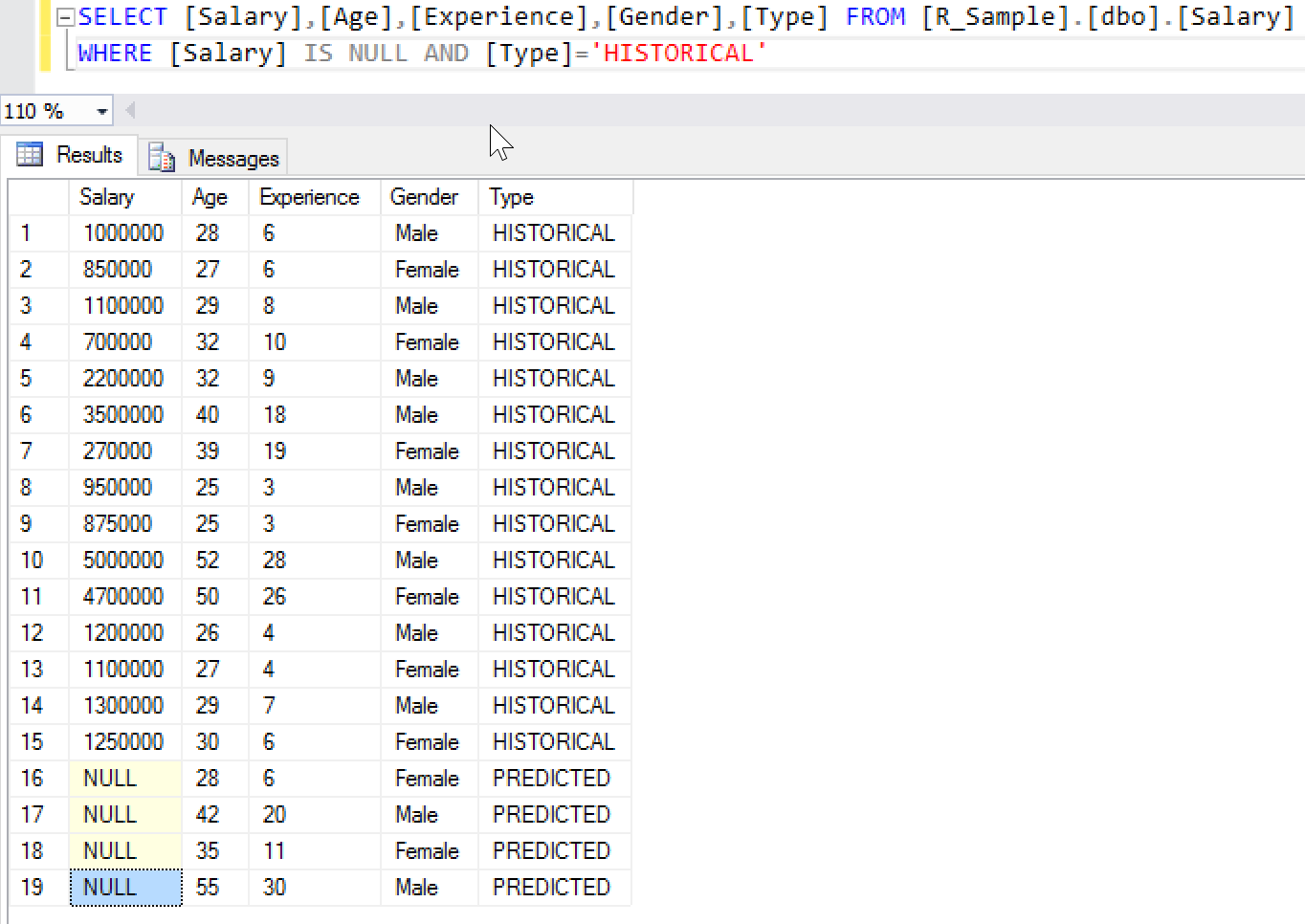

Now let’s see how to use Visual Studio instead of R Studio with SQL Server. The below image shows that how the data is stored in a table in SQL Server database.

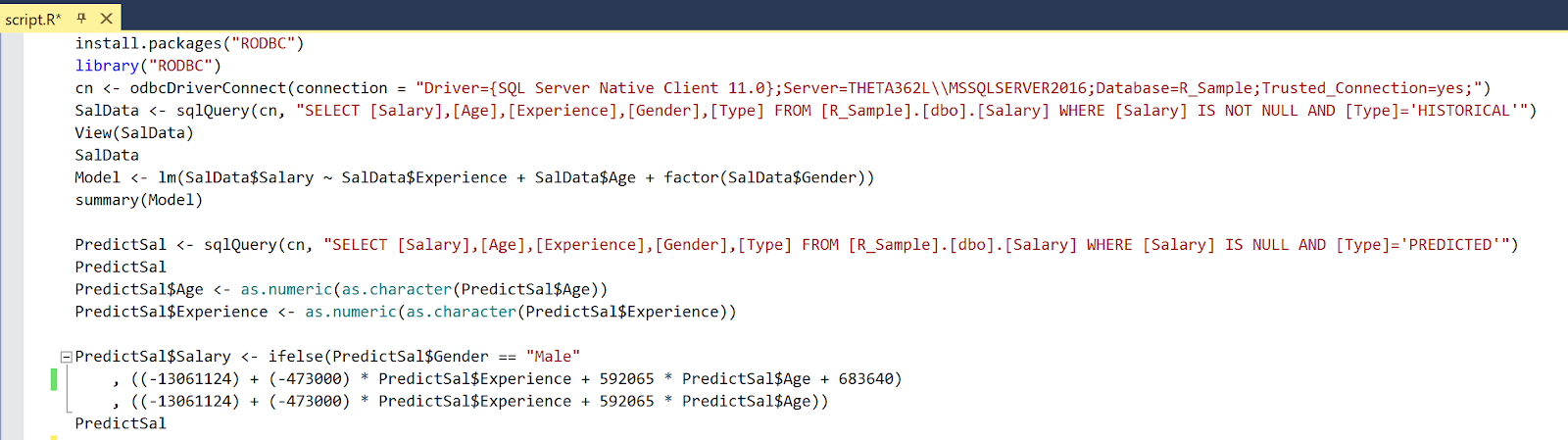

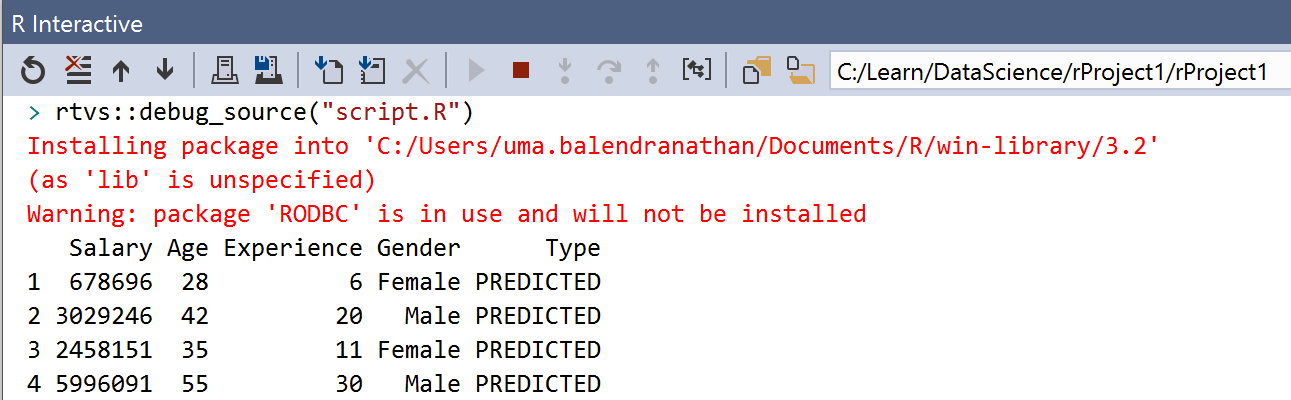

To following screenshots shows the prediction in Visual studio

<Code>

install.packages("RODBC")

library("RODBC")

cn <- odbcDriverConnect(connection = "Driver={SQL Server Native Client 11.0};Server=THETA362L\\MSSQLSERVER2016;Database=R_Sample;Trusted_Connection=yes;")

SalData <- sqlQuery(cn, "SELECT [Salary],[Age],[Experience],[Gender],[Type] FROM [R_Sample].[dbo].[Salary] WHERE [Salary] IS NOT NULL AND [Type]='HISTORICAL'")

View(SalData)

SalData

Model <- lm(SalData$Salary ~ SalData$Experience + SalData$Age + factor(SalData$Gender))

summary(Model)

PredictSal <- sqlQuery(cn, "SELECT [Salary],[Age],[Experience],[Gender],[Type] FROM [R_Sample].[dbo].[Salary] WHERE [Salary] IS NULL AND [Type]='PREDICTED'")

PredictSal

PredictSal$Age <- as.numeric(as.character(PredictSal$Age))

PredictSal$Experience <- as.numeric(as.character(PredictSal$Experience))

PredictSal$Salary <- ifelse(PredictSal$Gender == "Male"

   , ((-13061124) + (-473000) * PredictSal$Experience + 592065 * PredictSal$Age + 683640)

   , ((-13061124) + (-473000) * PredictSal$Experience + 592065 * PredictSal$Age))

PredictSal

Using SQL Server Management Studio

You can run the R code in SQL Server Management studio via external script. You need to follow the below steps to run the R script.

First configure the SQL Server and restart to enable to run the external scripts

sp_configure

GO

sp_configure 'external scripts enabled',1;

GO

RECONFIGURE

GO

If you get the following error message while you run the R script please make sure you enable the Lunch Pad.

SQL Server was unable to communicate with the LaunchPad service. Please verify the configuration of the service.

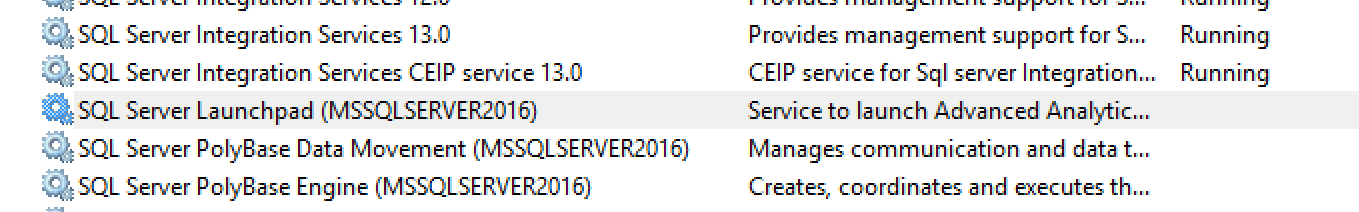

Administrative Tools -> Services
and find "SQL Server LaunchPad (MSSQLSERVER)"
right-click it and select "Start" and my scripts run again.

Create the stored procedure as shown below

CREATE PROCEDURE dbo.PredictSalary

AS

BEGIN

EXEC sp_execute_external_script

@language = N'R'

,@script = N'

PredictSal <- InputDataSet

PredictSal <- setNames(PredictSal, c("Age","Experience","Gender"))

PredictSal$Age <- as.numeric(as.character(PredictSal$Age))

PredictSal$Experience <- as.numeric(as.character(PredictSal$Experience))

PredictSal$Salary <-0

PredictSal$Salary <- ifelse(PredictSal$Gender == "Male"

   , ((-13061124) + ((-473000) * PredictSal$Experience) + (592065 * PredictSal$Age) + 683640)

   , ((-13061124) + ((-473000) * PredictSal$Experience) + (592065 * PredictSal$Age)))

OutputDataSet <- PredictSal'

,@input_data_1 = N'SELECT [Age],[Experience],[Gender] FROM [R_Sample].[dbo].[Salary] WHERE [Salary] IS NULL AND [Type]=''PREDICTED'''

,@output_data_1_name = N'OutputDataSet'

WITH RESULT SETS ((

"Age" INT NOT NULL,

"Experience" FLOAT NOT NULL,

"Gender" VARCHAR(10) NOT NULL,

"Salary" INT NOT NULL));

END

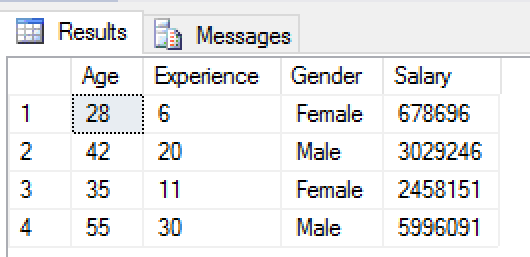

If you run the stored procedure, you will find the outcome as shown below.

EXEC dbo.PredictSalary

You can add the following logic to update prediction outcome automatically into the table.

CREATE TABLE #TEMP (Age INT, Experience INT, Gender VARCHAR(10), Salary INT)

GO

INSERT INTO #TEMP

EXEC dbo.PredictSalary

GO

SELECT * FROM #TEMP

GO

UPDATE E

SET E.Salary=T.Salary

FROM dbo.Salary E INNER JOIN #TEMP T ON E.Age=T.Age AND E.Experience=T.Experience AND E.Gender=T.Gender

WHERE E.Salary IS NULL AND E.Type ='PREDICTED'

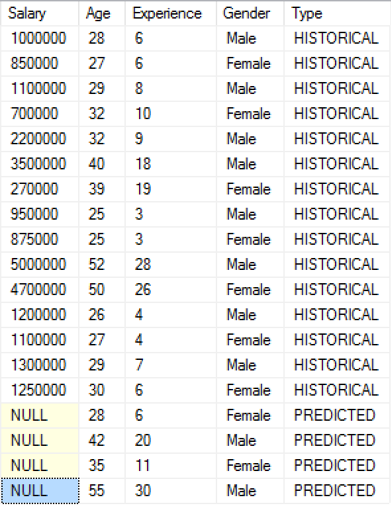

The table will get update once you run the script.

Cheers! Uma
